Oil Burner

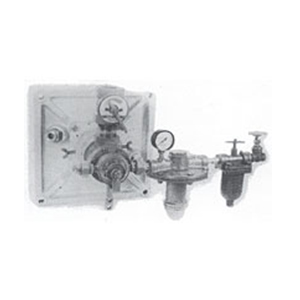

D-PLB
PROPORTIONNING OIL BURNER
(저압공기분무식 비례조절 오일버-너)
- 기름량과 공기량을 레바 하나로 조작하여 연소량이 전범위에 걸쳐 일정한 공기비로써 연소하는 저압공기식 (低壓空氣式) 오일버너 입니다.
- As the oil volume and air volume can be operated by only lever, this is the low pressure air-type oil burner which can be combustive by the regular air ratio to be the extent of the whole scope of the cmobustion capacity.

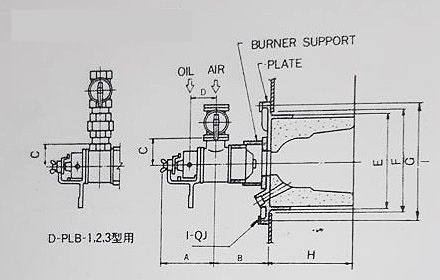

CAPACITY, DIMENSIONS (용량 및 버너칫수)
| MODEL | Max air flow (m³/min) |
Firing rate(l/h) | Pipe connection | A | B | C | D | E | F | G | H | I | J | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Oil | Air | ||||||||||||
| D-PLB-1 | 0.75 | 4.3 | 0.6 | 3/8(10A) | 1½(40A) | 151 | 128 | 65 | 70 | 247 | 260 | 300 | 160 | 4 | 14 |
| D-PLB-2 | 1.5 | 8.5 | 1.0 | 3/8(10A) | 1½(40A) | 151 | 143 | 65 | 70 | 247 | 260 | 300 | 230 | 4 | 14 |
| D-PLB-3 | 2.5 | 14.2 | 1.8 | 3/8(10A) | 2(40A) | 164 | 158 | 75 | 80 | 277 | 290 | 330 | 230 | 4 | 4 |
| D-PLB-5 | 5.7 | 32.4 | 4.0 | 3/8(10A) | 3(40A) | 207 | 212 | 120 | 103 | 370 | 390 | 450 | 350 | 4 | 19 |
| D-PLB-10 | 9.7 | 55.2 | 6.9 | 3/8(10A) | 4(40A) | 228 | 247 | 140 | 119 | 410 | 430 | 490 | 390 | 4 | 19 |
| D-PLB-20 | 21.2 | 121.0 | 15.1 | 1/2(10A) | 6(40A) | 289 | 357 | 205 | 159 | 287 | 510 | 530 | 460 | 4 | 22 |
- Standard Pressure, 기준압 : OIL 0.4kg/cm², AIR 600mmH2O
- Fuel, 연료 : kerosene 등유, Light Oil 경유, Heavy Oil 중유.
CAPACITY, DIMENSIONS (용량 및 버너칫수)
- BODY, BUTTERFLY VALVE, SUPPORT PLATE, TIKE, OIL REGULATOR, FILTER, PRESSURE GAUGE, STOP VALVE
SPECIAL ACCESSORIES, 특별부속품
- RETURN NIDDLE VALVE, PILOT BURNER, AIR PRESSURE GAUGE, CONTROL MOTER

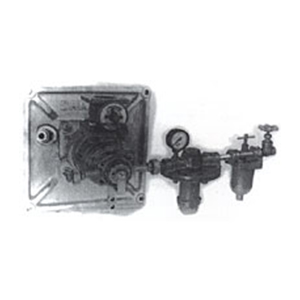

H-PLB
HOT AIR PROPORTIONING OIL BURNER
(고온공기용 저압공기분무식 비례조절 오일버-너)
- 폐열을 이용한 연소공기를 사용하므로 경제적이며 500℃의 예열공기를 사용할 수 있는 에너지 절약형 저압공기식 오일버너.
- An energy-saving version of the PLB type. This is an economic hot air oil burner which uses exhaust heat as the combustion air. The temperature of the preheated air is up to 500℃

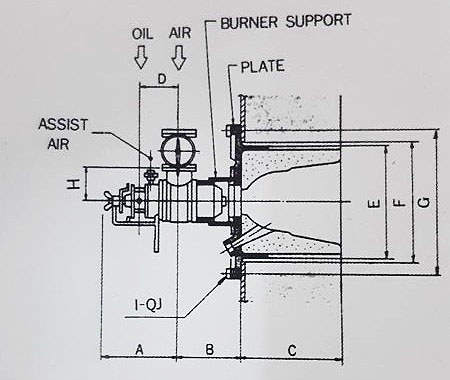

CAPACITY, DIMENSIONS (용량 및 버너칫수)
| MODEL | Max air flow (m³/min) |
Firing rate(l/h) | Pipe connection | A | B | C | D | E | F | G | H | I | J | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Oil | Air | ||||||||||||
| H-PLB-3 | 1.8 | 9.8 | 2.0 | 3/8(10A) | 3/8(40A) | 175 | 158 | 230 | 109 | 277 | 290 | 330 | 85 | 4 | 14 |
| H-PLB-5 | 4.0 | 22.3 | 4.5 | 3/8(10A) | 1/2(40A) | 211 | 212 | 350 | 128 | 370 | 370 | 450 | 120 | 4 | 19 |
| H-PLB-10 | 6.9 | 38.3 | 7.7 | 3/8(10A) | 3/4(40A) | 260 | 247 | 390 | 160 | 410 | 410 | 490 | 140 | 4 | 19 |
| H-PLB-20 | 15.0 | 83.6 | 16.7 | 1/2(15A) | 1¼(32A) | 341 | 357 | 460 | 225 | 487 | 487 | 530 | 205 | 4 | 22 |
- Standard Pressure, 기준압 : OIL 0.4kg/cm², AIR 600mmH2O
- Fuel, 연료 : kerosene 등유, Light Oil 경유, Heavy Oil 중유.

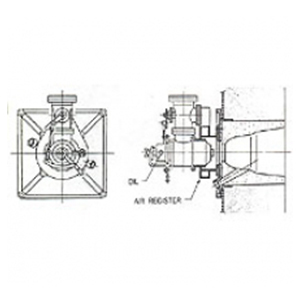

R-PLB
REGISTER TYPE PROPORTIONING OIL BURNER
(대용량 저압공기분무식 비례조절 오일버-너)
- D-PLB, H-PLB형의 대영량 버너로서 레지스터를 이용하여 2차공기를 투입시켜 연소하는 대용량 저압공기식 오일버너 입니다.
- This ism the D-PLB, H-PLB-type large capacity burner. This is the large capacity low pressure air-type oil burner which can be combustive by the air being inputted secondly by way of the register.
CAPACITY, DIMENSIONS (용량 및 버너칫수)
| MODEL | Firing rate(l/h) |
|---|---|
| R-PLB-30, 40, 60 | 80~350 |

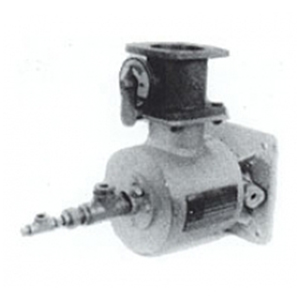

M B
HIGH PRESSURE ATOMIZING OIL BURNER
(내부 혼합형 고압기류식 오일버-너)
- Sprayer Gun 내부에서 기름과 고압1차 분무공기(중기)와 혼합한 후 분무연소하는 버-너이며 화염이 길어 철강가열로, Rotary Kiln용으로 아주 적합합니다. 분무공기 대신 증기를 사용할 경우 연료절약 및 Nox를 규제할 수 있습니다.
- This is the burner which can be sprayed and combutive after the oil and high pressure first sprayed air(steam) being mixed. As the flame is long, this burner is very suitable for the iron and steel heating furnace and rotary kiln. In case of using the steam instead of the sprayed air, you can control and regulate the energy-saving and Nox.
CAPACITY, DIMENSIONS (용량 및 버너칫수)
| MODEL | Firing rate(l/h)) | Oil pressure (kg/cm²) | Atomizing Pressure(kg/cm²) | Pipe connection | ||||
|---|---|---|---|---|---|---|---|---|
| Compressor | Steam | Oil | Atomizing Air | |||||
| Pressure | Capacity (Nm²/min) |
Pressure | Capacity (Nm²/min) |
|||||
| MB-10 | 10~60 | 6 | 6 | 16 | 6 | 0.35 | 1/2 (15A) | 1/2 (15A) |
| MB-20 | 2~120 | 6 | 6 | 31 | 6 | 0.7 | 1/2 (15A) | 1/2 (15A) |
| MB-30 | 25~180 | 6 | 6 | 47 | 6 | 1.1 | 1/2 (15A) | 1/2 (15A) |
| MB-40 | 25~240 | 6 | 6 | 61 | 6 | 1.4 | 1/2 (15A) | 1/2 (15A) |
| MB-50 | 35~300 | 6 | 6 | 77 | 6 | 1.8 | 1/2 (15A) | 3/4 (20A) |
| MB-60 | 45~360 | 6 | 6 | 92 | 6 | 2.1 | 1/2 (15A) | 3/4 (20A) |
| MB-80 | 60~500 | 6 | 6 | 132 | 6 | 2.9 | 1/2 (15A) | 3/4 (20A) |
H B
HIGH PRESSURE ATOMIZING OIL BURNER
(외부 혼합형 고압기류식 오일버-너)
- Sprayer Gun 내부에서 기름과 고압1차 분무공기(중기)와 혼합한 후 분무연소하는 버-너이며 화염이 길어 철강가열로, Rotary Kiln용으로 아주 적합합니다. 분무공기 대신 증기를 사용할 경우 연료절약 및 Nox를 규제할 수 있습니다.
- This is the burner which can be sprayed and combutive after the oil and high pressure first sprayed air(steam) being mixed. As the flame is long, this burner is very suitable for the iron and steel heating furnace and rotary kiln. In case of using the steam instead of the sprayed air, you can control and regulate the energy-saving and Nox.
CAPACITY, DIMENSIONS (용량 및 버너칫수)
| MODEL | Firing rate(l/h)) | Oil pressure (kg/cm²) | Atomizing Pressure(kg/cm²) | Pipe connection | ||||
|---|---|---|---|---|---|---|---|---|
| Compressor | Steam | Oil | Atomizing Air | |||||
| Pressure | Capacity (Nm²/min) |
Pressure | Capacity (Nm²/min) |
|||||
| MB-10 | 6~60 | 3 | 3 | 0.28 | 3 | 13.0 | 3/8 (10A) | 1/2 (15A) |
| MB-20 | 2~120 | 3 | 3 | 0.57 | 3 | 26.0 | 3/8 (10A) | 1/2 (15A) |
| MB-30 | 18~180 | 3 | 3 | 0.85 | 3 | 39.0 | 3/8 (10A) | 1/2 (15A) |
| MB-40 | 24~240 | 3 | 3 | 1.10 | 3 | 52.0 | 1/2 (15A) | 3/4 (20A) |
| MB-50 | 30~300 | 3 | 3 | 1.40 | 3 | 65.0 | 1/2 (15A) | 3/4 (20A) |
| MB-60 | 36~360 | 3 | 3 | 1.90 | 3 | 86.0 | 1/2 (15A) | 3/4 (20A) |
| MB-80 | 50~500 | 3 | 3 | 2.30 | 3 | 103.0 | 1/2 (15A) | 3/4 (20A) |
