Gas Burner

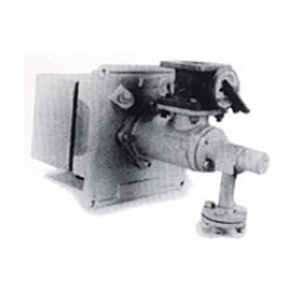

TMG
THROAT MIX GAS BURNER
(스로트 혼합현 가스버-너)
- 가스와 송기 혼합이 Throat부에서 이루어지므로 연소가 안정적이며 역화 염려가 없고 높은 턴-다운비를 유지하므로 로내교반 효과가 뛰어나며 보수점검이 쉬운 가스버-너입니다.
- As the mixing of the gas and air can be made in the throat part, this burner is very safe and you have nothinf to worry about the back-firing, As the high turn-down tatio is maintained, the swirling effect in the furnace is superior and the maintenance and inspection can be carried out with ease.
CAPACITY (용량)
| MODEL | Max air flow (Nm²/min) |
Firing rate (x10⁴kcal/h) |
Pipe connection | Flame(m) | ||
|---|---|---|---|---|---|---|
| Gas | Air | Flame diameter | Flame Length | |||
| TMG-3 | 0.68 | 0.4~3.15 | 1/2 (15A) | 1¹/₂(40A) | 0.1 | 0.3 |
| TMG-6 | 1.3 | 0.7~6.25 | 1/2 (15A) | 1¹/₂(40A) | 0.1 | 0.5 |
| TMG-12 | 2.6 | 1.3~12.5 | 3/4 (20A) | 2 (50A) | 0.15 | 0.8 |
| TMG-25 | 5.3 | 2.5~25.0 | 1 (25A) | 3 (80A) | 0.2 | 1.0 |
| TMG-50 | 10.5 | 5~50.0 | 1¹/₄(32A) | 4 (100A) | 0.25 | 4.3 |
| TMG-75 | 15.5 | 7.5~75.0 | 1¹/₂(40A) | 5 (125A) | 0.4 | 1.6 |
| TMG-100 | 20.7 | 10.0~100.0 | 2 (50A) | 6 (150A) | 0.5 | 1.8 |
- Standard Pressure, 기준압 : Air 450mmH2O, Gas : Air＋150mmH2O
- Fuel, 연료 : City Gas 도시가스, Natural gas천연가스, Propan gas 프로판가스, Butan 부탄가스, COG가스, Mix Gas
DMV-G(한국기계연구원과 공동개발)

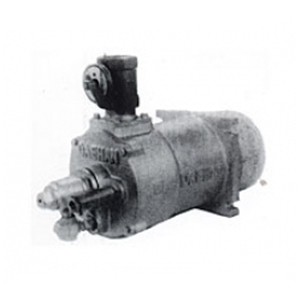

HIGH VELOCITY GAS BERNER
(고속화염 가스버-너)
- 고속화염으로 분출하여 대류전열의 급상승 효과로 일정한 온도유지 및 턴-다운비가 높아 모든 열처리로 간단하게 설치할 수 있는 가스버-너입니다.
- This is the berner which was developed jointly by the Korea Institute Machinery ＆ Metal, can be ejested by high velosity flame, regular temperature can be maintained because of the rapid rising effect and turn-down ratio is very high, Therefore, this burner can be easily installed into the various heating treatment furnace.
CAPACITY (용량)
| MODEL | Firing rate (x10⁴kcal/h) |
Gas Pressure (mmH20) | Air Pressure(mmH20)) | Pipe connection | |
|---|---|---|---|---|---|
| Gas | Air | ||||
| DMV-G-40 | 8 | 600 | 600 | 3/4 (20A) | 1¹/₂(40A) |
| DMV-G-50 | 15 | 600 | 600 | 1 (25A) | 2 (25A) |
| DMV-G-65 | 22 | 600 | 600 | 1¹/₄(32A) | 2¹/₂(65A) |
- Fuel, 연료 : City Gas 도시가스, Natural gas천연가스, Propan gas 프로판가스, Butan 부탄가스, COG가스, Mix Gas

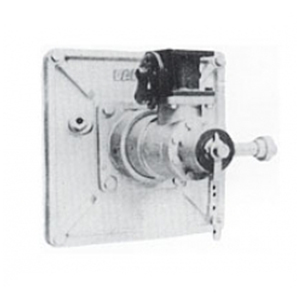

GPL
PROPORTIONING GAS BURNER
(비례조절형 가스버-너)
- 연료전환에 따른 버너교체시 버너전판, 타일은 교체하지 않고 Gas버너 몸체만을 교환하여 설치가능하며 Lever하나로 가스 및 공기량을 동시에 조절하는 비례조절형 가스버-너입니다.
- In case of replacing the burner in accordance with the fuel inverting, only the body of the gas burner can be replaced without the whole plate of burner and tile not being replaced and this is the proportion controlling-type burner which the gas bolume and air volume can be regulated by only lever.
CAPACITY (용량)
| MODEL | Max air flow (Nm²/min) |
Firing rate (x10⁴kcal/h) |
Pipe connection | Flame(m) | ||
|---|---|---|---|---|---|---|
| Gas | Air | Flame diameter | Flame Length | |||
| GPL-2 | 1.5 | 1.2~7.5 | 1/2 (15A) | 1¹/₂(40A) | 0.2 | 0.4 |
| GPL-3 | 2.5 | 2.1~12.5 | 3/4 (20A) | 2 (50A) | 0.25 | 0.5 |
| GPL-5 | 5.7 | 4.8~28.5 | 1 (25A) | 3 (80A) | 0.35 | 0.7 |
| GPL-10 | 9.7 | 8.1~48.5 | 1¹/₄(32A) | 4 (100A) | 0.4 | 0.7 |
| GPL-20 | 21.2 | 17.7~106.0 | 2 (50A) | 6 (150A) | 0.6 | 1.1 |
- Standard Pressure, 기준압 : Air 450mmH2O, Gas : Air＋150mmH2O
- Fuel, 연료 : City Gas 도시가스, Natural gas천연가스, Propan gas 프로판가스, Butan 부탄가스, COG가스, Mix Gas

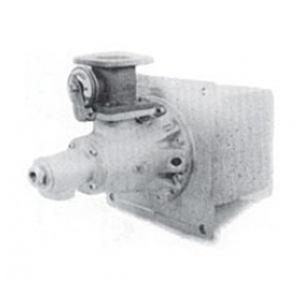

DLG
NOZZLE MIX GAS BURNER
(노즐믹서식 가스버-너)
- 화염이 안정적이며 턴-다운비가 높아 열처리로, 가열로, 용해로에 사용하며 열효율을 향상시키는 가느버-너입니다.
- As this is the burner which the flame is very stable and turn-down ratio is very high, this burner can increase the heating efficiency in case of the heating treatment furnace, reheating furnace and melting furnace.
CAPACITY (용량)
| MODEL | Firing rate (x10⁴kcal/h) |
Gas Pressure (mmH20) | Air Pressure(mmH20)) | Pipe connection | |
|---|---|---|---|---|---|
| Gas | Air | ||||
| DLG-50 | 15 | 600 | 600 | 1 (25A) | 2 (50A) |
| DLG-65 | 20 | 600 | 600 | 1¹/₂(40A) | 2¹/₂(65A) |
| DLG-80 | 30 | 600 | 600 | 1¹/₂(40A) | 3 (80A) |
| DLG-100 | 60 | 600 | 600 | 2 (50A) | 4 (100A |
| DLG-150 | 100 | 600 | 600 | 2¹/₂(65A) | 6 (150A) |
- Fuel, 연료 : City Gas 도시가스, Natural gas천연가스, Propan gas 프로판가스, Butan 부탄가스, COG가스, Mix Gas
